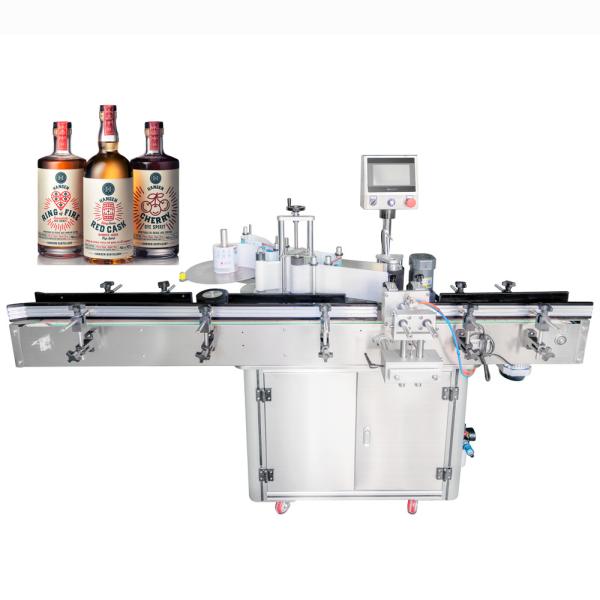

Orientation Wine 10mm Wide Round Bottle Labeling Machine Electric Drive

Place of Origin : Shanghai, China

Brand Name : YIMU

Certification : SGS

Packaging Details : wooden case

Price : $3,800.00/sets 1-2 sets

Model Number : YM515

MOQ : 1SET

Payment Terms : MoneyGram, Western Union, T/T, D/A, L/C

Delivery Time : 15-30 work days

Type : LABELING MACHINE

Applicable Industries : Manufacturing Plant, Food & Beverage Factory

Showroom Location : Canada, United States, Germany, Viet Nam, Mexico, South Korea, Ukraine, Australia

Condition : New

Application : Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware

Packaging Type : case

Packaging Material : Wood

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 110V/220V/380V

Dimension(L*W*H) : 2000(L)*800(W)*1750(H) mm

Weight : 250 KG

Warranty : 2 years

Key Selling Points : High-accuracy

Machinery Capacity : 20-50bottles/min

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 5 years

Core Components : PLC, Motor

Labeling speed : 20-50 Bottles/min

Suitable for label width : 5-150mm

Suitable for label length : 5-350mm

Labeling accuracy : 0.5mm

After-sales Service Provided : Video technical support, online video, spare part

Function : Labeling on round bottle and cans

Control system : Japanese Mitsubishi PLC

Product name : Auto Sticker Labeling Machine

Bottle type : Round Bottle Jars Cans

Contact Now

PRODUCTS DESCRIPTION

Product Features:

  1. High labeling accuracy: The machine is designed to apply labels to round bottles with high precision and accuracy, ensuring that the labels are aligned and positioned correctly.

  2. Versatility: The machine can handle a wide range of label materials, including paper, film, and foil, and can apply various label types, such as wrap-around, front-and-back, and top labels.

  3. User-friendly interface: The machine features a user-friendly interface that makes it easy to set up and operate. It also has a touch screen control panel for easy adjustments and monitoring.

  4. Adjustable labeling speed: The machine has an adjustable labeling speed, allowing it to match the production line's pace and improve efficiency.

  5. Automatic bottle positioning system: The machine is equipped with an automatic bottle positioning system that ensures the bottle is in the correct position for labeling.

Applications:

  1. Wine industry: The positioning labeling machine for round wine bottles is commonly used in the wine industry to label bottles of wine with high accuracy and precision.

  2. Beverage industry: The machine can also be used to label bottles of other beverages, such as juices, soft drinks, and energy drinks.

  3. Cosmetics industry: The machine can be used to label round bottles of various cosmetic products, such as perfumes, essential oils, and other skincare products.

  4. Pharmaceutical industry: The machine can be used to label round bottles of various pharmaceutical products, such as vitamins, supplements, and medications.

Overall, the positioning labeling machine for round wine bottles is a versatile and efficient labeling solution that can improve production efficiency and product quality in various industries.

PRODUCT PARAMENTERS
1
Label width(height)
10-180mm
2
Label length
20-500mm
3
Capacity
0- 60 bottles/min
4
Conveyor speed
0-30m/min
5
Labeling accuracy
±0.5mm
6
Bottle diameter
Below 120mm
7
Power supply
700W, 110V/220V, 50/60Hz, 1 phase (customized)
8
Label reel Inner diameter
76mm or 40mm
9
Label reel outer diameter
Max 380mm
10
Machine size
L2000 * W800 * H1750 mm
11
Machine net weight
250KG
12
Date printer
Optional
13
Transparent sensor
Optional
MAIN CONFIGURATION LIST
PLC
SIEMENS / MITSUBISHI
HMI
SIEMENS / WEINVIEW
Label feed motor
RAYNEN servo motor / KINCO stepper motor
Label sensor
SICK / FOTEK
Bottle sensor
SICK / KEYENCE / PANASONIC
Motor
Taiwan Taibang
Frequency changer
Taiwan Delta
